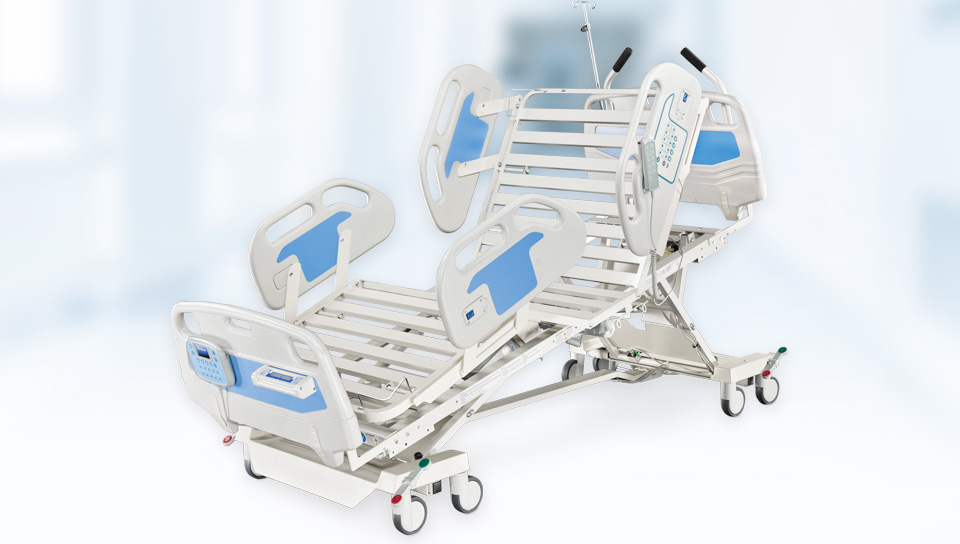

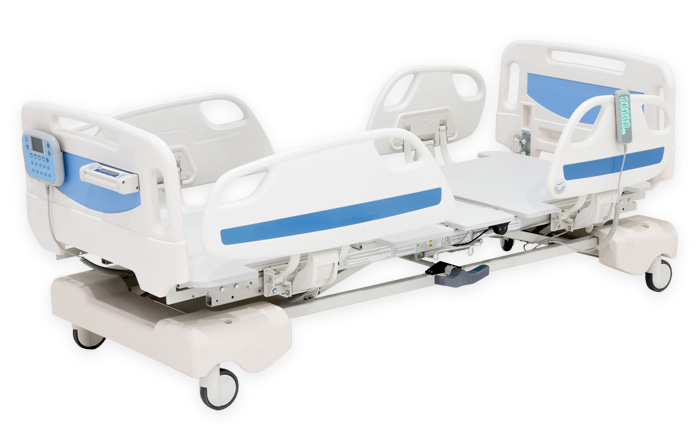

Introducing the NOA Hospital Platinum SC Plus Bed
NOA Medical, through our new NOA Hospital Division, introduces our newest product line for the acute care market, our NOA Hospital Bed Series. The NOA Hospital Bed Series offers you three specific models to best fit your clinical and patient needs, while providing you with a combination of our standard and premium features, and price points to best meet your overall facility requirements. Our top of the line Platinum SC Plus Hospital Bed provides you with all of our standard features plus our premium bed package which includes a digital nurse panel with real time information and our Patent Pending in Bed Scale System. Our quality of product, progressive design and aggressive price makes our NOA Hospital Bed Series one of the best values on the market.
- Standard Features
Standard Features
- Meets IEC 60601-2-52
- 600 lb. Safe Working Load
- Deck Height Range - 11.5” to 31.75”
- Self Leveling Motors
- Transport Handles for ease of transporting bed and patient
- Central and Directional Locking System with 5" Casters
- Caster Base Covers
- Drainage Hooks
- 15 Year Warranty on Decks & Frame Welds
- 4 Year Warranty on Electronics
- Available in Both 80” and 84” Lengths
Electronic Features
- Patent Pending In Bed Scale with Digital Readout - Watch Demo Video Above!
- Scale never needs calibration
- One Button CPR Quick Release Head Deck
- Bed Exit Alarm with Multiple Zones that ties into the Nurse Call System
- Under Bed Lighting and Backlit Handset
- Battery Backup
Controls
- Handset - 10 Button Backlit, Non-locking
- Head, Foot, Comfort Chair, Elevation, Trendelenburg, Under Bed Light
- Y-Cable (handset plugs into either side of bed)
- Nurse Panel
- All Handset Features Plus Angle and Height Indicators, CPR Button, Scale Readout
- Scale Control and Readout
- Optional Features
Optional Features
- Side Rail Controls for Clinician ease of use
- Pressure Redistribution Foam Mattress
- Free Standing Trapeze
- Specifications
Specifications
Frame width 35" Frame length with head and footboard, Normal length 84.5” Sleep deck width 35" Sleep deck length 80" Bed clearance 5.5" System - Accuracy +/- 1% of patient weight System - Weigh in any position Yes System - Scale repeatability 2% of patient weight Safe working load 600 lbs Deck height range 11" - 31" Max & reverse trendelenburg 14° Caster size 5” Max back angle 70° Max hip-knee angle 35° - Downloads
- Product Part Numbers
Product Part Numbers
Product Description Product Part Number Platinum SC Plus Hospital Bed 35" x 80" 1055029GRY Platinum SC Plus Hospital Bed 35" x 84" 1055030GRY

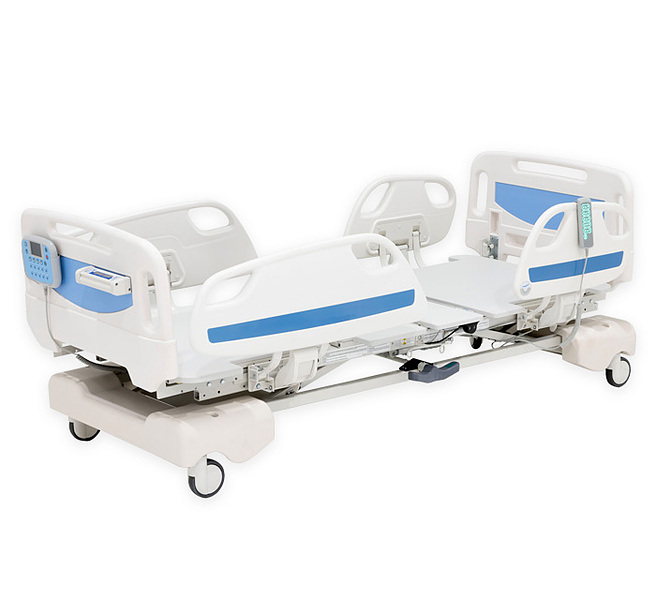

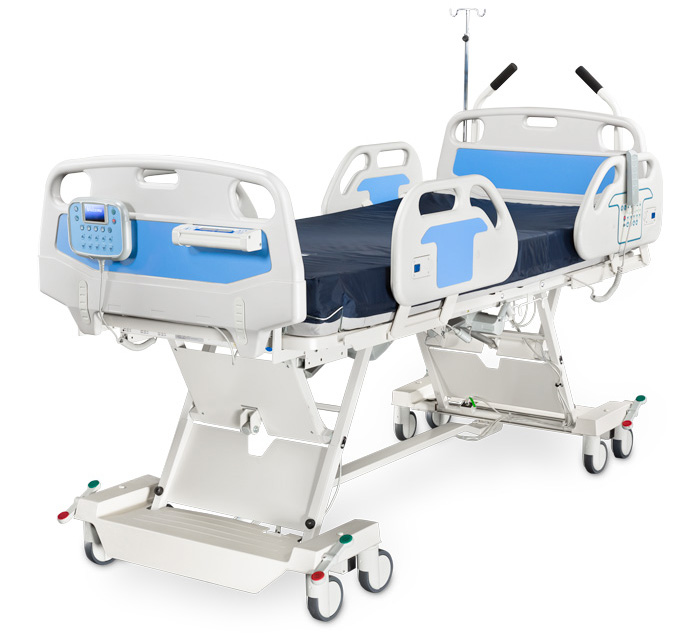

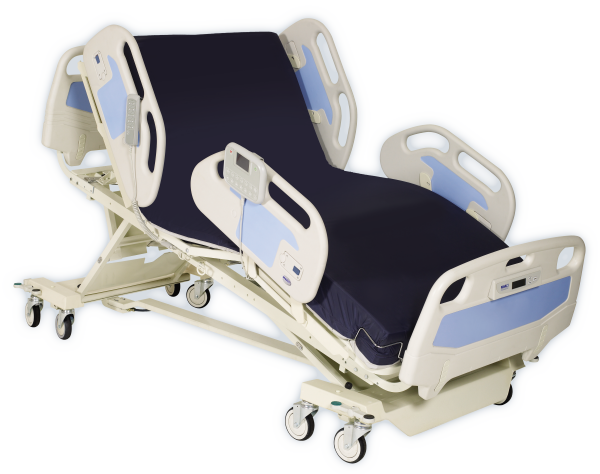

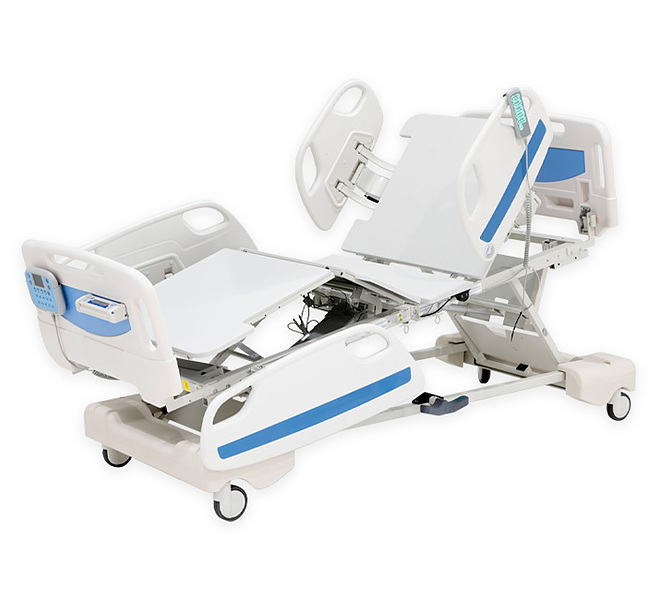

Hospital Platinum SC Plus Photo Gallery
